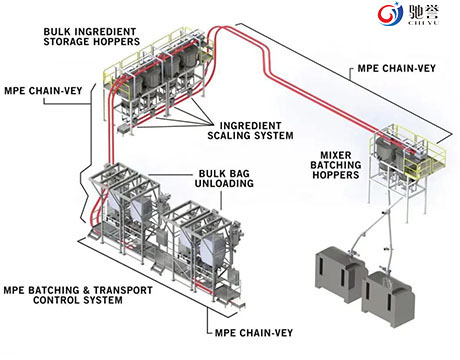

Tube Chain Feeding Conveying System For Powder And Granules With Dosing Equipment

Application and introduction

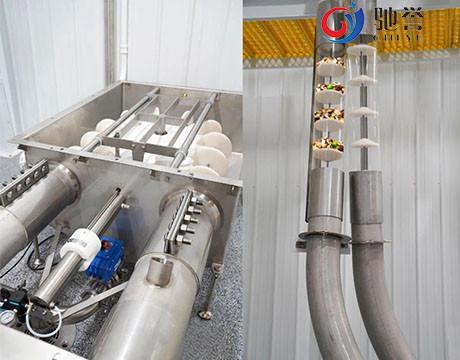

Tube chain conveyor is the continuous mechanical conveying equipment for fine powder, granule and massive materials.

It is a good choice for below applications:

Industry of Fine Chemicals: dye, paints, coating, carbon black, titanium pigment, ferric oxide, ceramics powder, coarse whiting, fine particle calcium carbonate, bentonite, molecular sieve, kaolin, silica flower, active carbon and so on.

Pesticide Ore: urea, ammonium chloride, ammonium bicarbonate, soda powder, solid pesticide, tungsten powder, fish oil, copper fine ore powder, coal powder, rock phosphate, alumina powder and so on

Building Material: cement, clay, yellow sand, quartz sand, clay powder, silica, limestone flour, dolomite fines, Wood chips, fiberglass, silicon dioxide, French chalk and so on.

Foodstuff Industry: flour, starch, grain, milk powder, food additive.

System features

1. Positive-displacement conveying device can realize conveying and computing powder, easy centralized control, increasing degree of automation and satisfying requirements against environmental protection of modern enterprises.

2. Compact conformation, little space usage, tridimensional conveying direction.

3. Flanges between inlet and outlet are airtight, then there is no need to install filter. When conveying powder, it can be feed in air and can assure that there is no dust spread into environment.

4. Powder is conveyed smoothly along the lines almost with none inside movement; therefore, there is little dilapidation against materials, slow curve conveying make little material granule into scraps.

5. According to different feeding conditions, distance between inlets can exceed 10m.

6. Chain wheel has been under hardening with minimum abrasion

7. Special transfer dish with extremely low coefficient friction and stable delivery capacity.

8. all our tube chain conveyors use our own computer program for different parts such as conveying line and curve parts to maintain necessary static friction and pullup and providing precise data to reach to low noise and little abrasion.

9. three dimension to convey: horizontal, inclining and vertical mix.

Zhangjiagang Chiyu Automation Equipment Co., Ltd focus on building bulk solid handling plant and supplying related machines and fabricated parts to plastic, chemical and petrochemical industry.

Our long suits are the best understanding of bulk material properties and the handling process. We are good at solving problems which exist in bulk solid conveying, storage, weighing, mixing and screening.

Meanwhile, offering optimal solutions and proposals of the whole project. Eventually, our company will provide you with an ideal project which acts according to your demands.With comprehensive experience, creative and innovative emotion.
