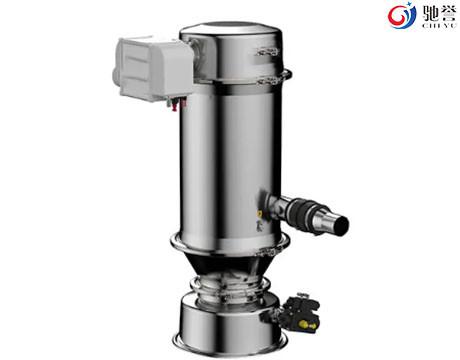

Vacuum conveying system for Chocolate and coffee

Chocolates, cookies, chips and coffee but also certain chemicals — the vacuum conveyor handles all. Suitable for vacuum conveying of food, but also chemicals that do not require the use of full acid resistant stainless steel, Chiyu’s new design is a premium heavy-duty vacuum conveyor.
Using the same design as the company’s premium range conveyors, but in electropolished stainless steel (ASTM 304) rather than the acid resistant grade (ASTM 316L), chiyu serves manufacturers of, for instance, confectionary and baking goods, snacks, tea and coffee, pet food, nutraceuticals, detergents and batteries.
Like all chiyu’s conveyors, chiyu offers a fully contained unit that enables toxic and allergenic powders to be transported without the risk of operators and the surrounding work environment being exposed to hazardous materials.
chiyu’s unique technology, used throughout the conveyor range, ensures that vacuum is created in the most energy and cost-effective way possible, and is only used when the pump is running. Automatic filter cleaning and an overall hygienic design make easy to clean and requiring minimal maintenance. The conveyor complies with contact requirements according to FDA, EC No 1935/2004 and EC No 10/2011.
Available in a wide capacity range from 3 to 33 liters per conveying cycle, up to 8 tons per hour, it offers high throughput with a small footprint.

Product Description

Vacuum Conveying is the process of moving bulk dry materials, such as powders, from place to place within a factory using suction. The material is transferred in a network of tubing from the pick up point or source to the customers process. Most Vacuum Conveying System transfer product based on a timed interval to the vacuum receiver. At the end of the timed sequence the discharge valve can open and the material conveyed can discharge in to the process.

There are two types of vacuum conveying. Dilute phase conveying and Dense phase conveying.

In Dilute phase conveying the material is entrained in the air stream and the is an almost equal part of air and product. This method is excellent for conveying almost any type of powder like sugar or flour.

In Dense pahse vacuum conveying the material is transferred in slugs within the convey tubing. The material moves slower then dliute phase conveying and is excellent choice for friable product or a blend of powders.

Using Scope
Vacuum conveyors can be widely used in magnetic materials industry, food processing industry, plastic processing industry, lithium power industry, coatings industry, chemical industry and pharmaceutical industry etc.

Zhangjiagang Chiyu Automation Equipment Co., Ltd focus on building bulk solid handling plant and supplying related machines and fabricated parts to plastic, chemical and petrochemical industry.

Our long suits are the best understanding of bulk material properties and the handling process. We are good at solving problems which exist in bulk solid conveying, storage, weighing, mixing and screening.

Meanwhile, offering optimal solutions and proposals of the whole project. Eventually, our company will provide you with an ideal project which acts according to your demands.With comprehensive experience, creative and innovative emotion.
