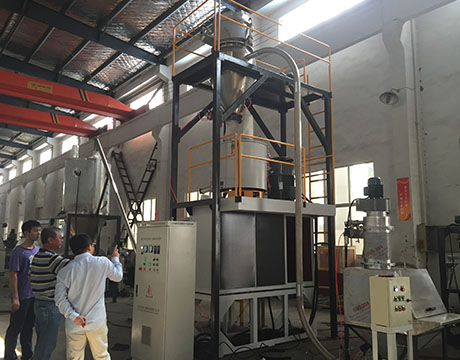

PVC mixer with automatic chemical dosing system Pneumatic vacuum
conveyor Extruder Machine
Application and introduction
To avoid the the workers manual dosing mistake, we developed this
PVC additives auto-weighing machine to instead of traditional
manual weighing. It can weigh the additives automatically, such as
stearic acid, wax, titanium dioxide, whitener, carbon black etc.
This system could avoid the mistake of manual weighing and also
keep the workshop clean.
This PVC additives auto dosing machine has the features of high
accuracy,high speed,low tolerance etc.
1. The tolerance is less than 10 gram/batch,
2. it can storage numberless formulas according to your need.
3. all the electrical part adopt famous brand to ensure the
accuracy and stability, we use American brand weighing sensor:
METTLER TOLEDO
4. Our scada software assess the daily/weekly/monthy reports of
total production, material to be consumed, batch recipe, printing,
break down alarm etc, these datas can be downloaded by USB for
further record and analysis.
5. We can do 5-12 bins for your choice.
| Min.bin number | 3 |
| Max.bin number | 12 |
| Weighing speed | 20kg/120 seconds |
| Control accuracy | ±5g |
| the volume of loading hopper | 150 litres/70kg |
| Bin raw material | SUS304 |
The Advantages of our auto-weighing/batching/metering/dosing machine(compared
with traditional manual way)
1.Avoid manual operation fault
2.Auto dosing system adopt computer control,it improves the
material weighing accuracy
,and avoid the chemical hazard to operator.
3.Save the labor cost and improve the production efficency,
in addition, powder running in the sealing circuit pipes and our
dust colleactor system can avoid the environmment pollution and
keep your workshop clean.
This system could auto weighing 4-12 kinds of powder or granules additives.
Main Features of whole system:
1.All parts in contact with the product is in 304 stainless steel
to avoid contamination
2.Up to 10 kinds of ingredients can be weighed at one time.
3.High accuracy, low tolerance, maximum tolerance of individual
ingredients will be within 15 gram
4.Batching capacity up to 800 kg/h.
5. Our PLC system can store up to 30 kinds of formula, you can
choose to use any one formula according to your need.
6. We use America brand Mettler Toledo weighing sensor, which can
ensure the weighing accuracy within 15 gram for each individual
additives.
7.Automatic and manual operation mode
Options:
1.De-dusting system for removing the dust to keep your factory
clean and protect worker's health.
2.Pushing rode can be added for the poor liquidity material, such
as titanium pigment.
