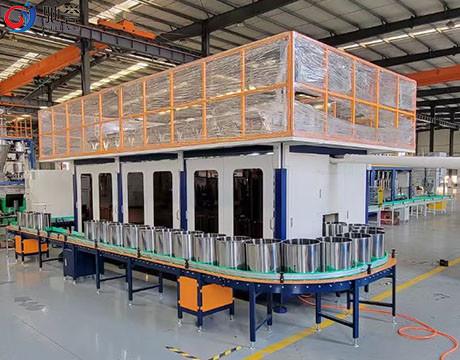

Chemical Multi-ingredient weighing dosing scale for rubber industry

Application and introduction
Chemical Multi-ingredient weighing dosing scale is designed for small load materials weighing process, is suitable for weighing of powder, pellet and flake material and can be used in many industries such as Rubber Plastic Chemical food forage and medicine industries. It adopts double screws, belt and electromagnetic vibration to feed material and is controlled by computer with the functions of material management, formula management, quality tracking, error-proof system, formula barcode printing etc. The equipment includes material storage ara, feeding system, roller conveyor, weighing unit,dust collector and control system.The best features of the equipment are small space occupancy, fast weighing speed, and high precision

Main Technical Parameters

Number of applicable dosing chemcials:8-48 kinds
Weighing range of electronic scale:10-50kgs
Weighing accuracyof electronic scale static:≤±0.1% F.S
Weighing accuracyof electronic scale dynamic:≤±0.15% F.S
Weighing accuracyof electronic scale accumulative:≤±0.2% F.S
Gradient of weighing display instrument:1g, 2g, 5g
Dosing cycle time and productivity continuous dosing capacity reached:240-360 bags/ shift
Dust contents in tail air after dust removal system:≤8mg/m3
System equipment noise:<75dB
Installed capacity:15-25kW/Set

Re-checking and rejection automatically
The latter weighing station will be-check previous one.if the two time weighting tolerance is over setting precsion,this batch weighing will be stopped but go on moving following the setting queue and rejected when pass valve check facility. This function is to reduce material waste and avoid big lost caused by large precsion during weighing.

Error proof for feeding material into storage tank
When feeding material into storage tank,scan label on chemical bag firstly. After control system confirming no mistake,the storage tank will open automatically,or the material can not be feeded to avoid feeding wrong material

Features
1.Reliable consistency all the time.
2.Intelligent ingredient management.
3.Totally enclosed dust-free operation.
4.Automatic batch counting and weighing of material.
5.Computerized keyboard or touch screen entry of all functions: set points, feed rates, calibration, etc.
6.Operator initiated cycling of system with alternate tie into computer control for programmed discharging.
7.Control system can be located in remote area of plant away from production machinery.
8.System can be configured to control a wide range of batch weighing receivers and other process equipment.
9.Computer and printer interface to report a variety of functions from date, operator ID, batch weight, formulation, sequence number, and much more.
10Stored Recipes
