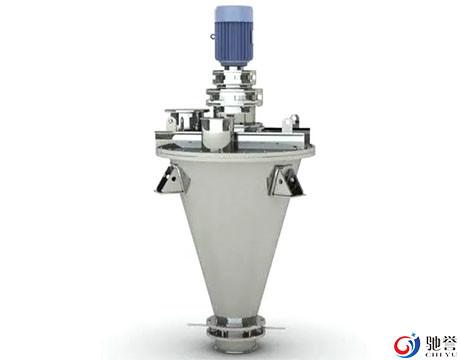

Double auger cone screw mixer
Main Usage
The SHJ series double augar cone mixing machine is a kind of
high-efficient and high-precise mixer that is widely applied by the
industries of pharmacy, chemical, and fodder for the mixing of all
kinds of powder material, especially for the mixing of the powder
materials with great disparity in its specific gravity or in its
mixing proportion.
Specialty
The rotation and revolution of the mixer is controlled by a set of
motors and the cycloidal pinwheel reduction device. The mixer has
the features of quick mixing and wide milling.
Working Principles:
The material is made to conduct a compound motion in the cone
because of the rotation and revolution of the screws. The effected
motions including:
1.The revolution of the screw along the wall making the material
conduct a revolution motion.
2.The rotation of the screw making the material rise along the
screw from the cone bottom.
3.The compound motion of the rotation and revolution of the screws
making partial material be absorbed into the screw cylindroid.
Meanwhile, under the motion ot centrifugal force, the partial
material in the screw cylindroid discharges radially.
4. The descended material drops under its sole weight. The four
kinds of motions effect convection,shearing and diffusion in the
cone, thus quick mixing can be achieved.
Why choose you?
1; this mixer meeting ISO9001 and CE and SGS certificate
2: this mixer is made up of stainless steel 304, we also can do as
consumer requirement
3: this mixer is vertical design, inside double auger, very
suitable for mix the feed, granule.etc
4: this mixer can add the heating or cooling jacket( as consumer
requirement)
5: this mixer need match the stent( as consumer requirement)
6: the voltage: 220v or 380V or as consumer requirement
7: guarantee: 1 year
8: payment: 30% TT in advance, 70% need to pay us before deliver
the goods
9: deliver time: 30 days
Technical data:
| Type | Total Volume(M³) | loads coefficient | Motor power KW | Size(L×W×H) | Net weight(kg) |
| LT-0.1 | 0.1 | 0.4-0.8 | 0.37 | 1190×740×770 | 130 |
| LT-0.3 | 0.3 | 0.4-0.8 | 0.37 | 2030×630×980 | 220 |
| LT-0.5 | 0.5 | 0.4-0.8 | 0.37 | 2320×730×1130 | 380 |
| LT-1 | 1 | 0.4-0.8 | 0.75 | 2800×920×1320 | 400 |
| LT-1.5 | 1.5 | 0.4-0.8 | 0.75 | 2800×920×1320 | 500 |
| LT-2 | 2 | 0.4-0.8 | 0.75 | 3180×1020×1550 | 650 |
| LT-3 | 3 | 0.4-0.8 | 1.5 | 3310×1120×1640 | 700 |
| LT-4 | 4 | 0.4-0.8 | 1.5 | 3750×1290×1820 | 780 |
| LT-5 | 5 | 0.4-0.8 | 2.2 | 4220×1400×1990 | 820 |
| LT-6 | 6 | 0.4-0.8 | 2.2 | 4220×1500×2100 | 980 |
| LT-8 | 8 | 0.4-0.8 | 4 | 4700×1610×2260 | 1200 |
| LT-10 | 10 | 0.4-0.8 | 4 | 5520×2960×2720 | 1520 |
| LT-12 | 12 | 0.4-0.8 | 5.5 | 5720×3010×2840 | 1850 |
