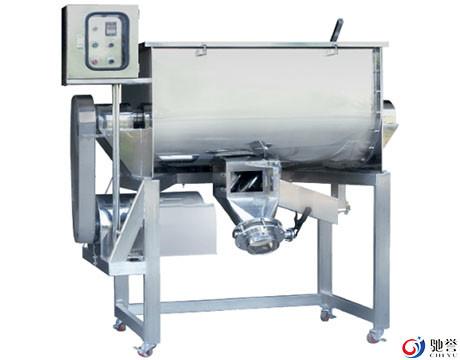

Horizontal ribbon blender powder mixer with vacuum conveyor
Scope of Application:
ChiYu Co., Ltd. is a professional supplier of Mixer, Powder Mixer
and U Type Mixer, it is suitable for 3-in-1 coffee powder,milk
powder, flour, seasoning powder, food additives, milk tea powder,
cocoa powder, chinese herbs, western medicine, grains powder, ice
cream powder and chemical mixing.
Granules or powder are sucked directly from container into mixing
machine through conveyor pipe by vacuum.
The free powder are collected by sanitary grade dust collection
device.
It is a device with dust-free, effort-saving, manpower-saving and
non-contamination.
Characteristic:
A, Fast mixing speed can satisfy the rigorous demand of mixing the
materials with different physical property.
B, The rotation is under critical speed, which will reduce the
effect of fragmentation to the material(e. G. Crystal particle)
C, Lower height of the container is convenient for installation.
D, The positive and negative ribbons are set up at he same level,
forming a mixing environment of low power but high efficiency.
Working Principle:
A, The horizontal axes make the materials move up and down.
B, The outer ribbon gathering the material from sides to center and
the inner ribbon pushing the material from center to sides.
C, Every screw makes the materials do axial and radial movement,
the materials do relative cyclical movement so to gain the
intensive mixings ends.

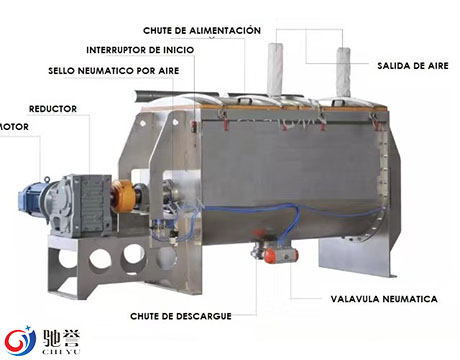

Feeding inlet on the body cover:
Two types:
A, used in the whole mixing/ blending process: In order to connect
the feeding device, we design the connecting mouth
B, used in the manual feeding: In order to operate and clean inside
of the body, we design feeding inlet(s) or door(s).
Advantage:
(1) Large loading factor and small equipment area.
(2) With the shear blade inside, the micro mixing can be achieved.
(3) According to the production demand, the equipment can be used
as a large-scale machine, and the price is cheaper than other
mixers.
Technical data:
| Type | Total Volume(M³) | loads coefficient | Motor power KW | Size(L×W×H) | Net weight(kg) |
| LT-0.1 | 0.1 | 0.4-0.8 | 3 | 1190×740×770 | 330 |
| LT-0.3 | 0.3 | 0.4-0.8 | 4 | 2030×630×980 | 720 |
| LT-0.5 | 0.5 | 0.4-0.8 | 7.5 | 2320×730×1130 | 980 |
| LT-1 | 1 | 0.4-0.8 | 11 | 2800×920×1320 | 1700 |
| LT-1.5 | 1.5 | 0.4-0.8 | 11 | 2800×920×1320 | 1800 |
| LT-2 | 2 | 0.4-0.8 | 15 | 3180×1020×1550 | 2100 |
| LT-3 | 3 | 0.4-0.8 | 18.5 | 3310×1120×1640 | 3000 |
| LT-4 | 4 | 0.4-0.8 | 22 | 3750×1290×1820 | 3980 |
| LT-5 | 5 | 0.4-0.8 | 22 | 4220×1400×1990 | 4620 |
| LT-6 | 6 | 0.4-0.8 | 30 | 4220×1500×2100 | 6180 |
| LT-8 | 8 | 0.4-0.8 | 37 | 4700×1610×2260 | 8200 |
| LT-10 | 10 | 0.4-0.8 | 45 | 5520×2960×2720 | 9520 |
| LT-12 | 12 | 0.4-0.8 | 45 | 5720×3010×2840 | 9950 |
